Our comprehensive process is designed to achieve maximum results at reasonable costs.  We use electromagnetic utility locating tools in conjunction with ground penetrating radar to provide you with the most reliable results. We can customize the deliverables to fit your project needs, from detailed hand sketches to full utility mapping with GPS coordinates, as well as GIS updates.

The services that we provide include, but are not limited to: Ground Penetrating Radar Services, Electromagnetic Utility Locating, Vacuum Excavation, CCTV Pipeline Inspection, Concrete Ground Penetrating Radar, Utility Surveying, and Gas/Propane Leak Detection. Below are some details about the UtilityScan DF system.

UtilityScan DF

Utility Scan

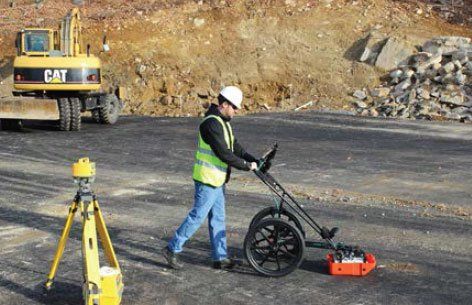

The UtilityScan DF is ideal for locating the position and depth of metallic and non-metallic objects, including service utilities such as gas, communications, sewer lines as well as underground storage tanks and PVC pipes in various soils. The UtilityScan DF is purpose-built and offers an easy-to-use touchscreen interface to view shallow and deep targets simultaneously in a single scan.

Utility Scan

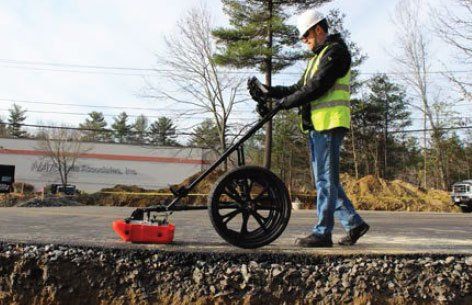

The new dual-frequency 300 MHz and 800 MHz antenna is GSSI’s first digital antenna, allowing the operator to locate targets at depths of up to 5 m/16ft. (in North America). With an operation life of up to eight hours and survey speed up to 10 km/h (6.25 mph), data collection is fast and efficient.

Utility Scan

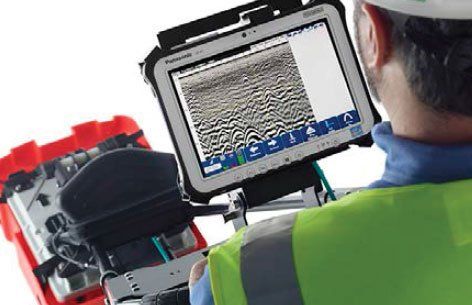

Advanced software features offer the user several options to view the data; each channel individually, both channels separated via split screen, or our patent-pending Blend mode. The UtilityScan DF also provides advanced signal processing tools such as stacking, signal floor tracking and background removal.

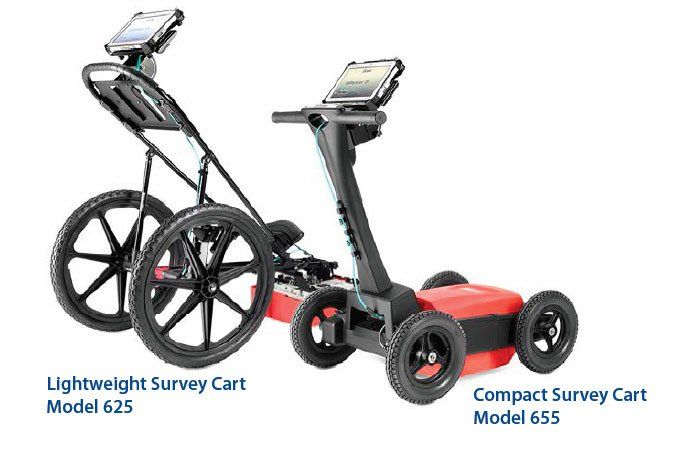

UtilityScan DF System

System Includes

  • Dual-frequency antenna (300 and 800 MHz)
  • Customized Panasonic Toughpad FZ-G1 control unit with extended life battery and AC power supply
  • Choice of survey cart with encoder wheel
  • 2.0 meter control cable
  • Transit case for control unit
    Two batteries and two-bay battery charger: antenna
    User Manual
    2-year warranty
